The highly popular X2 series revival.

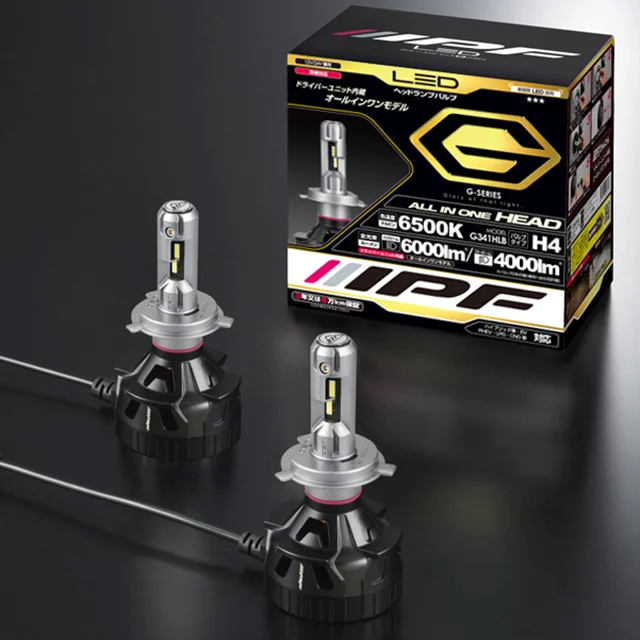

The "LED Headlamp Bulb G Series" boasts outstanding light distribution and brightness thanks to the filament-type LEDs, which have been jointly developed for LED chip manufacturers and headlamp bulbs.
The H4 all-in-one model has been highly regarded by previous products, including a bright and wide range of light distribution, and easy to install, and has been further evolved.
The brightness has been greatly improved while ensuring greater reliability; "Uses a new dedicated LED" that illuminates pure white light with low light distribution performance and excellent visibility" has been achieved to provide a safe and comfortable night drive.
In addition to the high visibility required by the light source of LED headlamp bulbs, we thoroughly researched and researched the light wavelength distribution that brightens your car. The colors we offer by IPF are gentle and powerful to the eyes. Not only is it beautiful in sunny weather, but it also allows high visibility in bad weather.
The LED emitting surface is the same shape as the filament of a halogen bulb, so when attached to a light body designed for halogen bulbs, it is possible to provide precise illumination without disturbing the original light distribution.
The H4 all-in-one model features a +α feature that makes it easy to see roads and white lines, and achieves a wide illumination and even illumination across the entire LED illuminated surface to reduce unevenness of brightness caused by the irradiation pattern, and achieved the best irregularity of IPF history.
The key to the development of LED headlamp bulbs, and the bulb is thinner in pursuit of both light distribution and brightness and light distribution, while the thick construction is more beneficial in terms of heat and cooling of LED chips. Good or bad cooling performance is an important factor of determining the power of the LED bulb (= Brightness: the number of lumens). In order to keep these in mind, the G Series introduces three new technologies
Technology 1: Dual CPS (Patent No. 6178943). The LED substrates of IPF LED headlamp bulbs are made with copper substrates that require advanced manufacturing technology.
Technology 2: "High Heat Conduction and High Heat Discharge Structure" LED body uses high heat conduction aluminum die cast alloy that combines complex shape and high heat conduction. Effectively conducts heat from the LED to the heatsink equipped with a small electric cooling fan for effective cooling.
Technology 3: "LACH*" *LED Air-Cooling Hole (Patent No. 6410983). It has been largely sized to the size of the LED substrate, and greatly increases heat dissipation, using a light distribution simulation system, and a special shaped vent is installed under the LED body that does not affect the light distribution as a lamp, and uses the heat generated from the LED bulb to blow cold air directly into the LED bulb. Air cooled with air flow The mouth "LACH" is a simple and effective cooling structure developed by IPF.
Equipped with a constant current driver circuit, it will always provide a constant and stable brightness, keeping the maximum brightness without affecting the voltage during idling stop or when parking.
In addition to a noise filter and long lasting capacitor to reduce radio noise, it also includes a number of safety features such as static and power pulse protection function, voltage protection function, and current protection.
The polarity free design allows it to be used regardless of whether you are using a Phillips or negative control vehicle.
Durable and high-quality components are carefully selected and manufactured under thorough quality control. As a manufacturer of genuine parts delivery, we conduct testing according to the requirements of the car manufacturer, and we have also set our own own high degree of rating such as salt and mud water test and actual vehicle endurance. Durable enough to recreate and withstand the conditions you can think of in any usage environment around the world
Uses both 12 and 24 V
Compatible with vehicle inspection.
About Warranty (12V car: 3 years or 60,000 km, 24V car: 2 years or 100,000 km)
For domestic cars only.
This product is for headlamps only.
This is a replacement LED bulb for halogen vehicles.
Built-in high beam indicator light circuit, but in some vehicles with low year cars, the indicator may not light up if the bulb is incandescent bulbs. In that case, our high beam indicator light circuit (part number: WA-4, tax excluding \2,400).
For compatibility information, please check our website.
Compared to genuine halogen bulbs, the rear part of the bulb is larger than the original halogen bulbs, so please check the space.
Cannot be installed on vehicles with a cover behind the light.
Specifications may differ from the compatibility information depending on the vehicle, optional vehicle, or grade, so please check with your current vehicle.
Depending on the vehicle, you may need to remove the light.
This product is compatible with the vehicle inspection of irradiated light within the color range defined by JIS D5500. However, due to the color of the actual bulbs, there may be cases of incompatibility with the vehicle inspection. Please return it to the original bulb.
Taxi vehicles are not covered under the warranty.
When using this product, some vehicles may light up or flash.
By using this product, there may be cases where noise may come into into your radio.
The following vehicle devices are designed to be combined with the original bulbs, so the product may not work properly when installing this product. [Automatic driving, anti-collision brake (automatic braking), adaptive cruise control, lane departure prevention aid system, malfunction control function, clearance sonar, parking aid system, adaptive headlamp, and other devices using cameras, mili radars, infrared lasers, ultrasonic waves, etc.]
Because the heat generates less than the original bulbs, snow and ice may be difficult to melt.
When connecting the connector, please insert the connector firmly into place. Please note that if the plug is insufficient, the connector may melt and cause a fire
